The 250-watt compressor reference design with a three-phase inverter provides superior management for BLDC motors, enhancing vitality use and motor administration.
Within the purposeful ecosystem of a fridge, a 250-watt compressor performs a pivotal function in driving the refrigeration cycle, the core course of chargeable for cooling and meals preservation. This compressor operates by compressing the refrigerant, a crucial step that elevates its strain and temperature, setting the stage for the next cooling phases. As the center of the fridge, the compressor’s environment friendly energy score ensures efficient cooling and aligns with energy-efficient practices, essential in trendy home equipment. Its operation entails cyclically remodeling the refrigerant between gaseous and liquid states, a course of basic to extracting warmth from the fridge’s inside and thus sustaining a persistently low temperature. This steady cycle, powered by the 250-watt compressor, exemplifies the synergy between vitality use, operational effectivity, and the important preservation capabilities of up to date refrigeration know-how.

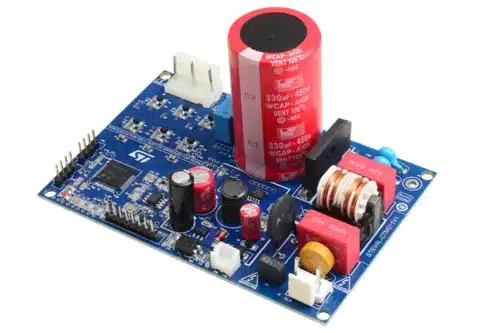

The STEVAL-CTM011V1, developed by STMicroelectronics, is a flexible 250-watt compressor reference design that includes a three-phase inverter at its coronary heart. This inverter is effectively powered by the STSPIN32F0601Q controller, which skillfully merges a 3-phase 600-volt gate driver with an Arm Cortex-M0 STM32 Microcontroller Unit (MCU). The ability stage is additional optimized by incorporating a high-speed STGD5H60DF Insulated-Gate Bipolar Transistor (IGBT).
The design is fitted to controlling variable-speed 3-phase Brushless DC (BLDC) compressor motors, which apply to refrigeration methods, air compressors, air-con items, and different related purposes. It distinguishes itself with its system-in-package strategy, providing an energy-efficient resolution with superior integration and full safety. Enhanced efficiency is achieved, particularly in its 2-shunt model, setting it other than different market alternate options.
The system’s energy provide stage features a VIPER122 high-voltage converter in a buck configuration, producing essential provide voltages for the compressor’s operation. It helps one-shunt and a couple of+1 shunt sensing topologies, offering flexibility in sensing configurations.
Outfitted with the reference firmware STSW-CTM011, the board facilitates the implementation of sensorless field-oriented management (FOC). This firmware is especially efficient for driving Everlasting Magnet Synchronous Motors (PMSMs) and BLDC motors, extending the board’s applicability throughout numerous domains, together with industrial home equipment.
The design incorporates a number of key options. It provides low standby energy consumption, supplemented by overcurrent and undervoltage protections. The inverter energy stage is rated at 600 V and 5 A, guaranteeing sturdy efficiency. Moreover, the standby energy consumption is notably low, underneath 300 mW. The system may also drive motors with an influence output of as much as 250 W. The answer reduces the Printed Circuit Board (PCB) footprint and cuts down the general invoice of supplies, presenting a extra environment friendly and compact design.
STMicroelectronics has examined this reference design. It comes with a Invoice of Supplies (BOM), schematics, and so forth. Yow will discover extra information in regards to the reference design on the corporate’s web site. To learn extra about this reference design, click on right here.
